Delamination and water ingress on commercial cladding projects pose massive safety and financial liabilities. You must prioritize proper bonding from the start to avoid these disastrous outcomes. Substandard adhesion easily compromises an entire facade. Because MCM clay brick flexible stone conforms to substrates differently than rigid masonry, traditional adhesive spread assumptions often fall short. It bends and adapts to surfaces. This requires a remarkably thorough, uniform adhesive bed to perform correctly over decades.
Our primary goal here is straightforward. We want to provide project managers, architects, and contractors with verifiable, field-tested methods. You will learn exactly how to ensure optimal adhesive coverage. You will also discover how to implement rigorous site testing. Following these steps secures long-term bonding performance on every single project phase.
Inadequate coverage directly leads to serious project callbacks. Voided warranties often follow these basic installation mistakes. Furthermore, falling facade materials create severe safety hazards in mid-to-high-rise applications. We cannot ignore these structural liabilities. Building owners face massive repair bills when cladding systems fail prematurely.
We must understand the difference between rigid and flexible dynamics. A flexible stone wall panel relies entirely on continuous backing. It needs this solid support to maintain its impact resistance. It also relies on the substrate to hold its intended flat shape. Rigid tiles can temporarily span small substrate voids. They rely on their own internal structural stiffness. Flexible panels operate differently. They will telegraph any underlying void. They compress into empty spaces upon physical impact. If a maintenance cart bumps a hollow spot, the material will puncture or dent.
Moisture presents an even bigger threat to building longevity. Air pockets behind the cladding act as hidden water reservoirs. Rain and condensation collect inside these dark voids. When temperatures drop, this trapped water freezes. Ice expands forcefully. This freeze-thaw cycle exerts massive expansion stress on the panels. You will eventually see unsightly efflorescence on the surface. Calcium hydroxide reacts with carbon dioxide, leaving white chalky stains. Worse, the ice expansion ultimately causes catastrophic bond failure. Wind suction forces on high-rise buildings further exacerbate this weakness. The panels simply tear away from the wall.
Contractors must take precise steps on-site to validate their work. We focus heavily on immediate implementation and measurement. You need real-time feedback during the active installation process. Manufacturer guidelines mean nothing without proper execution.
You perform this test while the mortar remains wet. It reveals exactly how the adhesive performs under the panel. Straight troweling is critical here. Never swirl your trowel. Swirls trap air pockets permanently. Straight troweling allows air to escape perfectly.
Inspect the back of the material closely. You want to see uniform adhesive transfer. No trowel ridges should remain visible anywhere. The mortar must stick equally to both the substrate and the panel. We strongly recommend performing this test at specific intervals. Do it at the start of every day. Repeat it whenever substrate conditions change. You should also lift and check one panel for every 100 square feet installed.
You must also check coverage after the adhesive fully cures. Gently tap the finished installation using a non-marring tool. You can use a specialized hard-rubber ball or a tapping rod. Do not use metal hammers.
Listen closely to the pitch of the sound. A hollow, high-pitched sound instantly indicates a hidden void. This means you achieved inadequate coverage in that specific spot. Conversely, a solid, deep "thud" confirms full, continuous contact. Use this acoustic method to audit large wall sections quickly. Mark any hollow areas with painter's tape for immediate remediation.

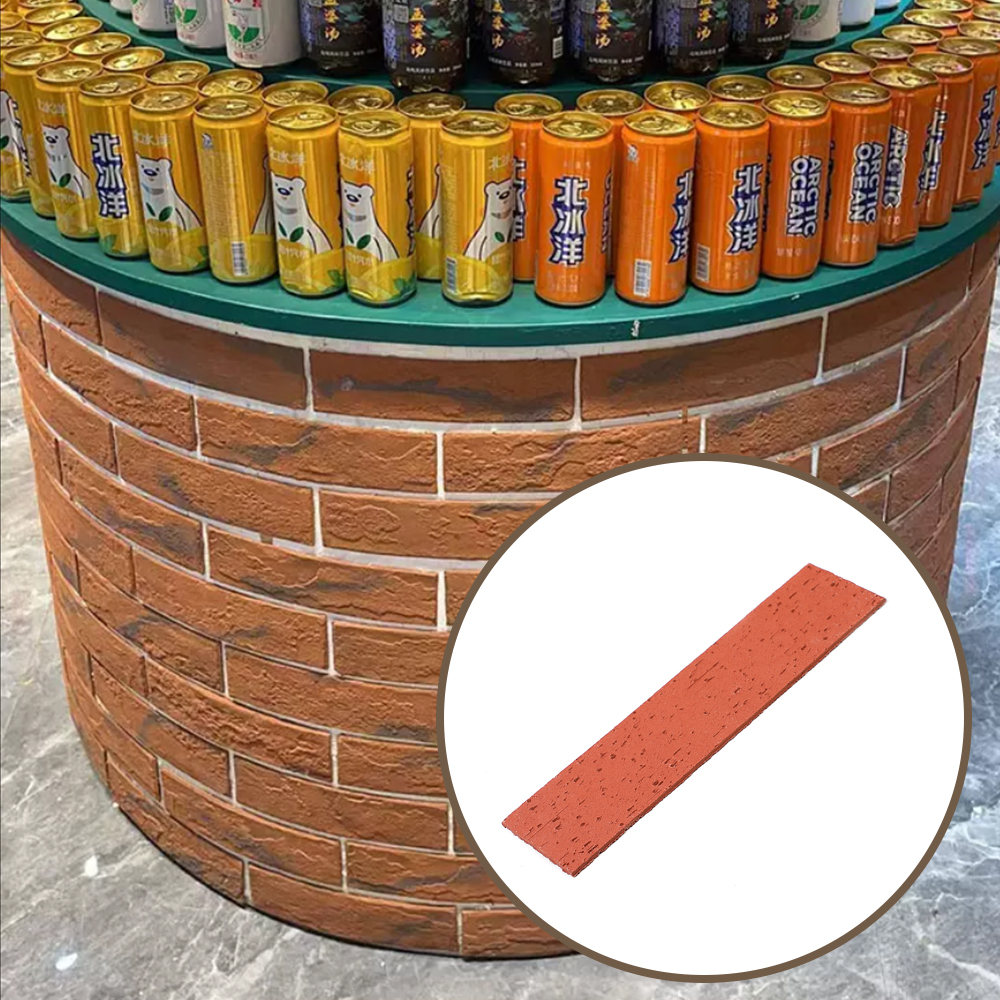

Architects love using flexible stone because it wraps easily. You can flawlessly cover structural columns, domes, and arches. However, this unique physical capability presents highly specific coverage challenges. Standard flat-wall application techniques will fail here.
You must actively manage the "bridging" risk. Convex curves create outward tension on the material. The panel constantly wants to spring back to its flat state. Concave curves compress the panel inwards. Both opposing forces can pull the material away from the adhesive bed. This often happens right before the mortar fully cures. You walk away thinking it looks perfect, but it pulls loose overnight.
Quality control requires immediate adjustments on these complex shapes. You must modify your installation strategy.
Spring-back usually occurs at the outermost edges. You must secure these seams until the adhesive grabs completely. Sometimes you need temporary edge bracing. You can use mechanical clamps or specialized low-tack tape. Exterior columns face intense sun loads. Sun heat accelerates adhesive skinning. You must work faster on exterior curves to ensure the bond forms properly.
Let us look at what actually goes wrong in the field. We must move past standard manufacturer promises. Implementation realities often look quite different under pressure. Crews rush, weather changes, and mistakes happen.
High temperatures or heavy winds cause mortar to "skin over." The adhesive forms a thin, dry film on its surface. You bed the panel into it, and coverage looks sufficient visually. However, actual chemical adhesion remains at zero. The panel will eventually fall off. You can audit this easily. Have installers touch the troweled adhesive ridges lightly with a finger. If the adhesive transfers to their finger, it remains viable. If it feels dry, they must scrape it off and reapply.
Improper trowel notch sizing causes similar disasters. A flexible terracotta brick veneer requires specific ridge collapse to achieve 100% coverage. If you use a notch depth that is too shallow, the ridges never flatten fully. This leaves continuous linear air voids behind the cladding. Water quickly fills these empty vertical channels.
Substrate contamination frequently ruins perfect trowel work. Dust acts as an invisible bond breaker. Unprimed drywall or highly porous concrete creates a different issue. They sap moisture away rapidly. They pull water from the adhesive before it cures properly. The chemical curing process stops abruptly. The installation fails despite visually adequate coverage during the lift test.
Table: Common Adhesive Failures and Audit Solutions
| Failure Type | Root Cause | Field Audit Solution |
|---|---|---|
| Skinning Over | Wind, low humidity, or extreme heat | Perform finger-touch test before placing every panel. |
| Linear Voids | Incorrect trowel notch size or angle | Perform trowel-and-lift test; measure actual ridge collapse. |
| Bond Breaking | Dust, dirt, or unprimed substrate | Wipe wall with a damp sponge; mandate primers for dry walls. |
| Spring-back | Curve tension on panel edges | Enforce 100% back-buttering; use temporary edge bracing. |
Verifying coverage means absolutely nothing if you use the wrong mortar. You must select adhesives designed specifically for flexible materials. Standard stiff mortars simply crack under movement. We guide decision-makers toward highly polymer-modified options.
Prioritize flexible adhesives. European standards classify the best options as C2TES1 mortars. The "S1" designation confirms deformability. Standard equivalents in other regions also work well. These systems easily accommodate normal building movement. They stretch to handle thermal expansion typical of exterior facades. A soft tile flexible stone bends naturally. The adhesive behind it must bend too.
Always check manufacturer compliance before purchasing materials. Compare the adhesive manufacturer's technical data sheets against the cladding warranties. They must align perfectly. Some cladding manufacturers void warranties if you use unapproved mortar brands. Do your homework early in the procurement phase.
Next, mandate a pre-construction mock-up. Conduct a formal pull-off adhesion test on-site. Engineers bond a metal dolly to the installed cladding. They use a dynamometer to pull the dolly until it breaks off. They record the exact failure point. This validates both your adhesive choice and your crew's technique. You must confirm their coverage capability before approving the full-scale rollout.
Checking adhesive coverage is never a one-time event. It represents an ongoing Quality Assurance standard during the entire installation process. You must constantly monitor the work to protect your investment.
Combining the correct polymer-modified adhesive with rigorous field testing ensures long-term success. You guarantee the durability and aesthetic longevity of the cladding system. These strict protocols protect your project from moisture damage, structural failures, and costly callbacks.
A: Exterior applications require 95% to 100% adhesive coverage. You must ensure zero voids exist near the edges or corners. Proper coverage prevents water infiltration and stops destructive freeze-thaw cycles from dislodging the panels.
A: Perform the lift test at the start of every shift. You should also repeat it immediately when changing substrate types. Periodically test installed panels throughout the day, roughly checking one panel for every 100 square feet.
A: No. Back-buttering the panel and notch-troweling the substrate work together. This combination ensures 100% coverage, especially on uneven walls. You must use both techniques simultaneously for optimal bonding strength.
A: Generally, no. Standard ceramic tile adhesive remains too rigid after curing. Flexible cladding requires highly flexible, polymer-modified adhesives. These specialized mortars stretch slightly. They match the physical bending properties and thermal expansion rates of the material.
