Installing a hollow-core PVC ceiling presents unique structural realities. Unlike rigid drywall, these lightweight thermoplastics require precise, continuous support to counteract constant gravity and routine thermal expansion. Failing to respect these material limits introduces severe project risks. Improper joist or batten spacing inevitably leads to irreversible deflection, commonly known as sagging. When panels bow, joints separate, ultimately causing ceiling failure and forcing frustrating, material-wasting retrofits. You must prevent this from day one. Choosing the right panel thickness only works if it aligns strictly with your framing architecture and specific environmental load requirements. In this guide, you will learn the exact physics behind material deflection and how to build a proper support grid. We will explore standard spacing rules, insulation load management, and expert fastener selection to ensure a perfectly flat, durable finish.
Thermoplastic materials obey specific physical laws. Over time, constant gravitational pull interacts with the material's structural limits. This interaction produces a phenomenon called "creep." Creep represents a permanent, irreversible stretching of the polymer chains. Even a panel carrying its own weight across an overly wide span slowly bows downward. The structural matrix simply stretches out of shape.
The 24-inch joist trap ruins countless installation projects. Most residential homes utilize standard wooden roof trusses. Builders frequently space these structural members 24 inches on center to support heavy exterior roofing. Fastening flexible interior plastic directly across these wide voids guarantees a sagging failure. The hollow-core material lacks the necessary structural density to bridge two feet of empty air.
Thermal expansion variables constantly accelerate this failure curve. Homes trap immense heat in upper levels and attic spaces. When ambient temperatures rise directly above the ceiling plane, the plasticizer compounds soften. This heat transfer drastically reduces rigidity and bridging capacity. You must account for these ambient climate loads when designing the hidden support matrix below.
Fixing the wide span issue requires a secondary framework. You must build a secure attachment grid by installing perpendicular furring strips. We call this process strapping. These wooden battens bridge wide joists and create a secure attachment matrix.
The 16-Inch Rule stands as the dominant industry consensus. Installers consider 16 inches (400mm) on center the absolute maximum safe spacing for commercial 8mm to 10mm panels. This specific grid geometry provides incredibly dense anchor points. These anchor points distribute gravitational loads evenly, preventing the material from bowing between the screws.
High-humidity and high-heat environments demand tighter tolerances. Commercial showers, indoor pools, and unventilated bathrooms experience severe heat spikes. If you install a waterproof PVC ceiling panel in these wet zones, you must upgrade to an aggressive 12-inch (300mm) spacing grid. Moisture combined with rapid heating compounds structural stress on the polymer. Tighter strapping guarantees absolute rigidity against aggressive warping.
Perimeter support demands equal attention from contractors. Ceiling edges require rigid, continuous locking mechanisms to stay flat. You must install continuous U-channels or J-trims securely fastened to the top wall framing. These specialized trims cradle the panel ends safely.
Follow this standard installation sequence to ensure proper support:
Panel quality directly dictates structural capability. You cannot evaluate a product purely on surface aesthetics. You must analyze the internal engineering of the cladding before purchasing your framing lumber. The hidden internal structure dictates how wide you can safely space your battens.

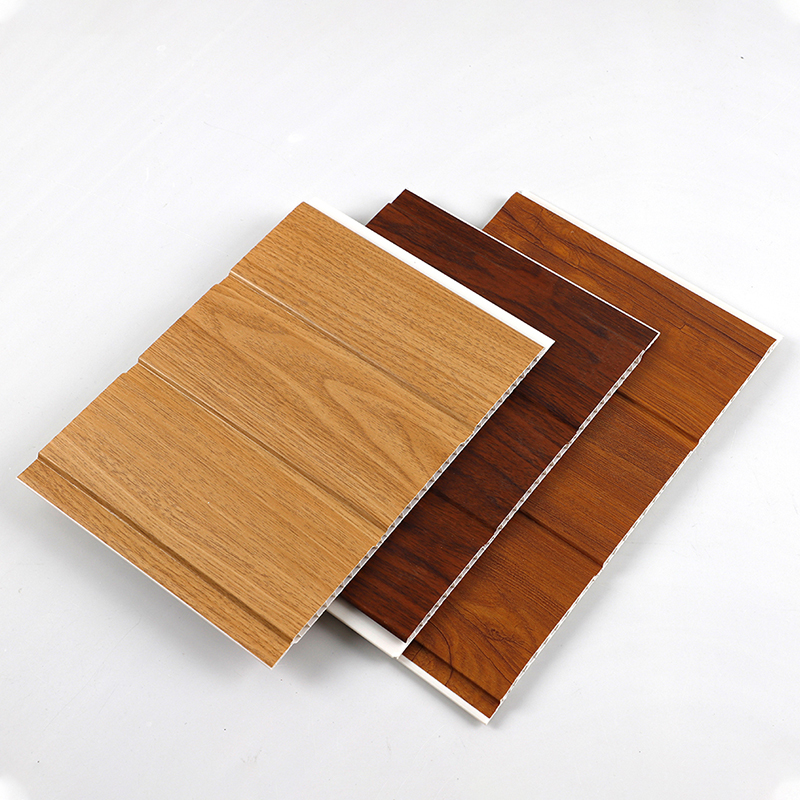

Extrusion webbing determines all spanning strength. Manufacturers extrude hollow-core materials using internal I-beam structures. We refer to these internal bridges as webbing. Closer internal webs mean higher overall rigidity and significantly less sagging over time. You can test this density physically. Pinch the panel tightly between your fingers. High-quality webbing resists crushing.
Thickness groupings categorize the materials into structural tiers. We classify thinner panels as budget options. They require incredibly tight batten spacing to survive long-term. Conversely, commercial-tier products safely span wider gaps due to their thick external walls.
| Panel Thickness | Quality Tier | Recommended Batten Spacing | Sagging Risk Profile |
|---|---|---|---|
| 5mm - 7mm | Budget / Economy | 10 to 12 inches (250mm - 300mm) | High risk if improperly supported |
| 8mm - 10mm | Commercial / Premium | 16 inches (400mm) maximum | Low risk on standard grid |
| Over 10mm | Heavy-Duty | 16 inches (400mm) standard | Minimal risk |
Fastener selection secures the entire investment safely. Never use pneumatic narrow-crown staples for overhead installations. Under a heavy thermal shift, a staple acts like a knife. It will easily slice through the thin plastic nailing flange. You must specify wide flat-head flange screws. Drive these screws carefully into the extended lip to lock the material tightly to the wooden furring strip without cracking the plastic.
Hidden loads create silent, unexpected ceiling collapses. Installers often overlook the massive weight problem residing inside the attic space. Plastic panels act strictly as decorative finishing layers. They possess absolutely zero structural load-bearing capacity. Homeowners often blow loose cellulose or lay dense fiberglass batt insulation directly onto the back of the ceiling. This dead weight forces the material to bow downward immediately.
Mitigation requires an independent engineering solution. You must support any above-ceiling insulation separately from the decorative layer. Contractors accomplish this by stapling heavy-duty wire mesh or tensioned nylon strapping directly to the bottom of the joists. Alternatively, they attach rigid foam board securely above the PVC layer. These structural barriers carry the entire insulation load independently. They leave the decorative plastic entirely stress-free.
Expansion gaps represent another invisible risk factor. Novice installers often push panels completely tight against the wall studs. This mistake ignores thermal physics entirely. Plastic expands outward when ambient room temperatures rise. You must leave a minimum 1/4-inch expansion gap hidden inside the perimeter trim track. Without this crucial void, thermal expansion forces the panels to push aggressively against the rigid walls. The outward pressure forces the center of the room to buckle downward, perfectly mimicking a mechanical sagging failure.
Watch out for these common implementation errors:
Upgrading a commercial or residential space requires holistic material logic. Transitioning from ceiling infrastructure to overall room finishing involves different physical rules. Ceiling panels prioritize lightweight hollow-core designs to fight gravity. Wall panels demand entirely different adhesive and support logic due to their dense, solid construction.
Once your ceiling securely fastens to a proper 16-inch strapping grid, you should evaluate high-density wall materials. Contractors look for premium cladding to complete the aesthetic vision. You want durable vertical surfaces to match the overhead quality.
We routinely contrast hollow-core overhead cladding with solid-core wall options. Premium materials like a 3D PVC marble wall panel or a rugged textured rock slate marble sheet rely strictly on heavy-duty construction adhesives. They glue directly to existing drywall or rigid wall substrates. They do not utilize mechanical batten spanning systems because gravity works differently on vertical planes.
Contractors frequently specify a heat transfer PVC marble sheet to deliver a highly durable, scratch-resistant wall finish. Another excellent heavy-gauge alternative involves installing a golden film PVC marble sheet in high-traffic zones. Both serve as premium, heavy-duty alternatives for wall cladding. They seamlessly integrate with a properly framed, watertight ceiling installed directly above. By keeping ceiling weights strictly light and wall densities structurally heavy, you achieve a highly elevated, failure-proof interior space.
The longevity of your PVC ceiling depends completely on the unseen structural framework hidden beneath it. Proper architectural planning prevents catastrophic material failure before it begins.
Take time to source appropriate wooden furring strips and wide-flange fasteners before finalizing your material orders. Getting the hidden support structure right guarantees a flawless, flat finish that resists sagging for decades.
A: No. A 24-inch spacing easily exceeds the structural spanning limit of thermoplastic materials. You must install 1x3 or 2x2 wooden furring strips perpendicularly across your existing joists every 16 inches to prevent inevitable sagging and joint separation.
A: No. PVC panels cannot bear live or dead loads safely. Any blown-in cellulose or fiberglass batt insulation must be supported by an independent vapor barrier, wire mesh, or rigid foam board installed directly above the ceiling level.
A: Always use corrosion-resistant, flat-head or flange-head screws. Staples are highly discouraged in ceiling applications. Staples easily tear through the thin plastic nailing flange during minor thermal shifts, leading to detached and severely bowed ceilings.
A: Yes. Thinner budget panels measuring 5mm to 7mm require a much tighter support spacing of 10 to 12 inches. Meanwhile, heavy-duty commercial panels measuring 8mm to 10mm can safely span up to 16 inches without deflecting under their own weight.
